FIRST OF ITS KIND! SLIDE SHOW OF THE BUILD: FIVE (5) SPEED - OCC Stingray w/ 48 volt Electric Rear Hub

*CLICK ON RECTANGLE [BOTTOM RIGHT] FOR FULL SCREEN

** 7 SECOND DELAY EA. FRAME OR CLICK ON PHOTO LINEUP

*** HIT PAUSE SIGN TO STOP...   PLAY SIGN TO RESTART.

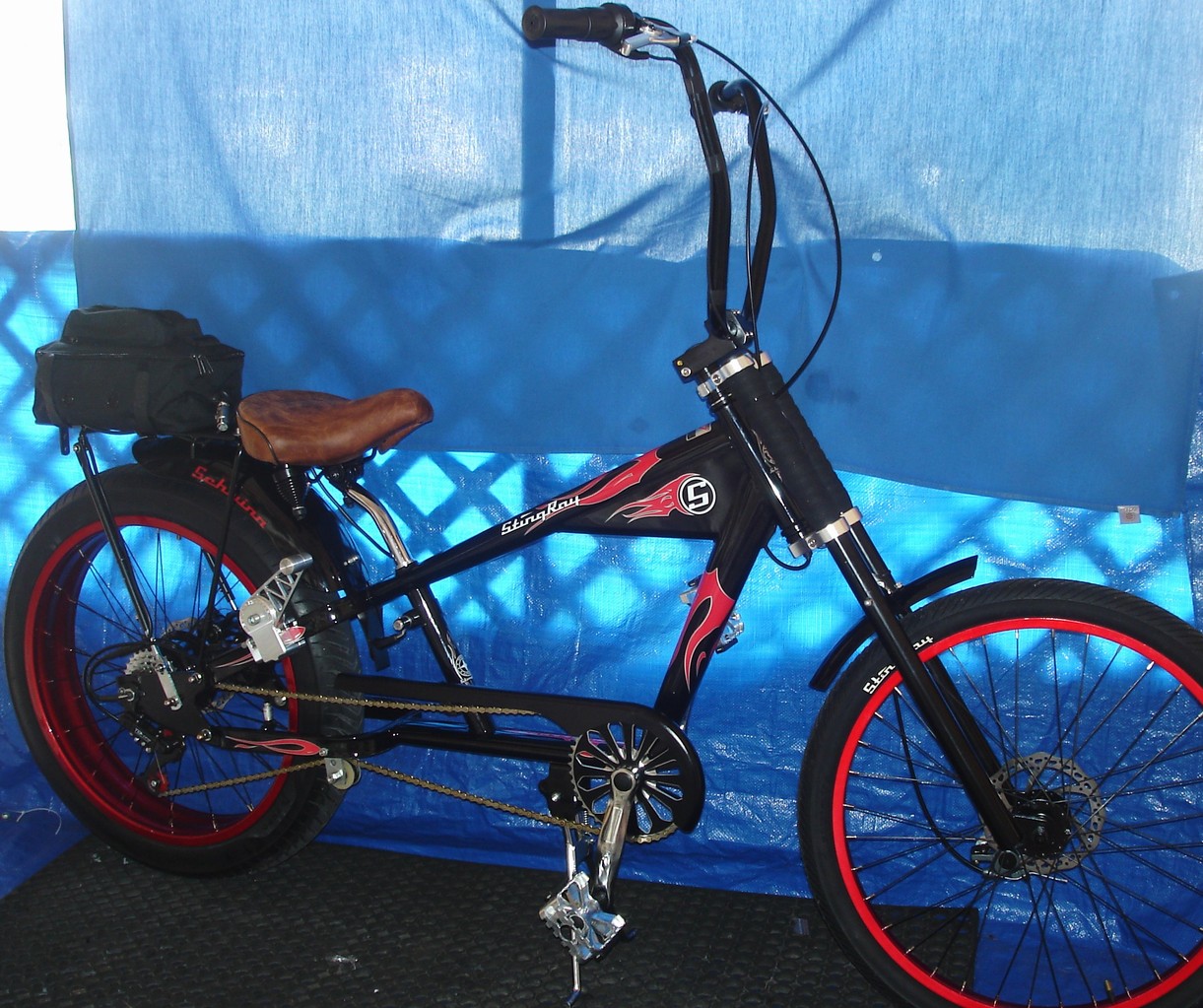

  • COMPLETED UNIT: 5 Speed OCC Stingray = First of it's Kind!
  • NOS - NEW OLD STOCK OCC Schwinn Stingray Black w/Red flames
  • Heavily Wax Frame
  • Remove Crank, Bearings, Spindle - Clean / Degrease

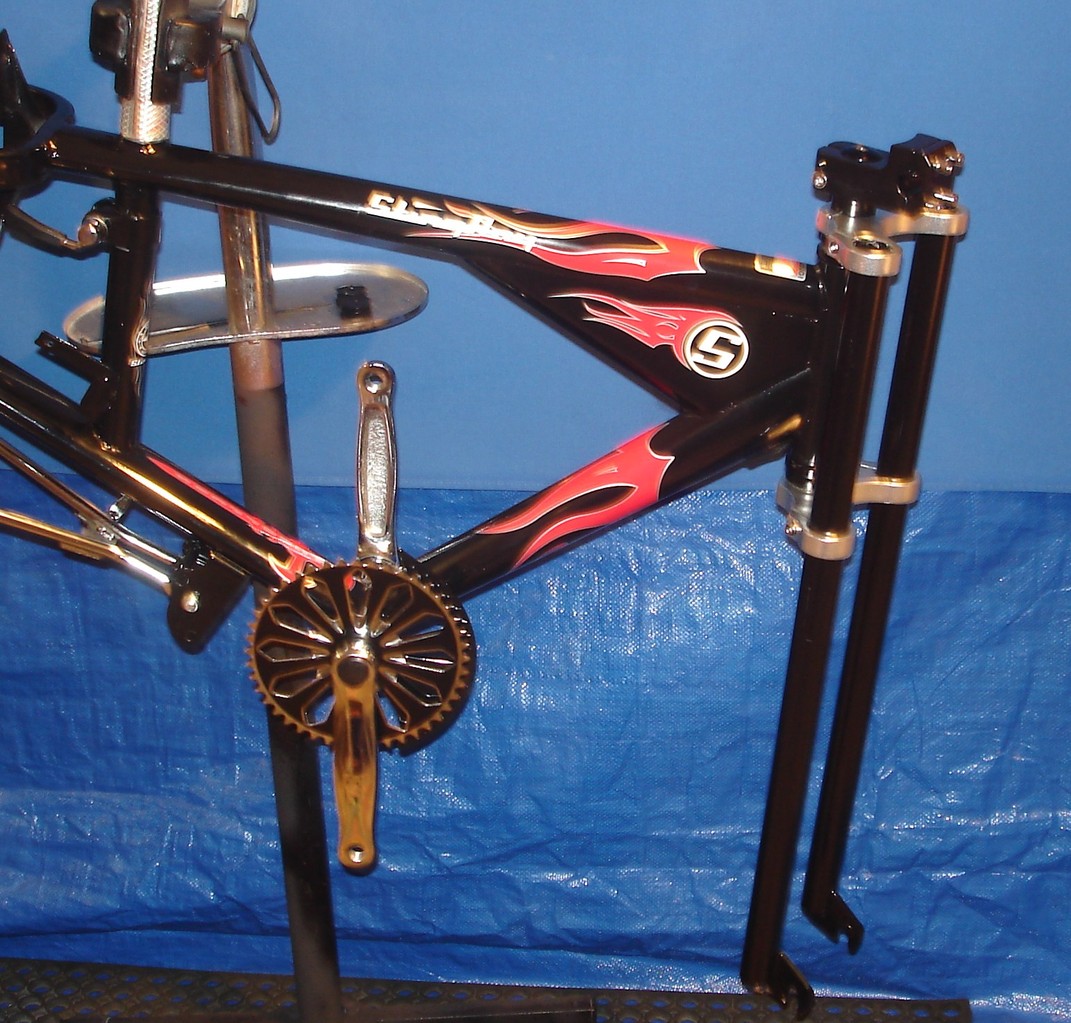

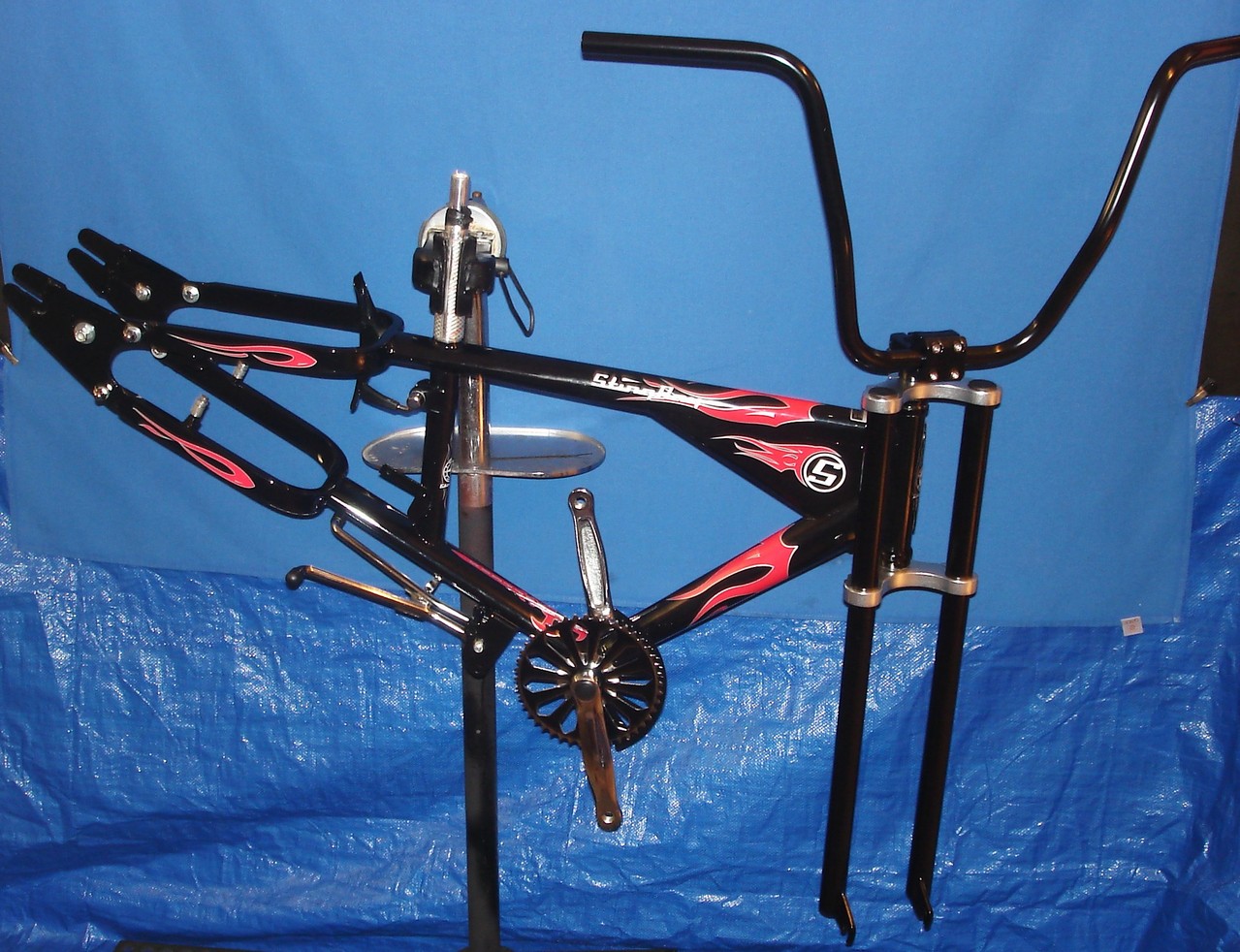

  • Properly Re-Install CrankSet... Install Threadless Headset / Triple Tree / Stem

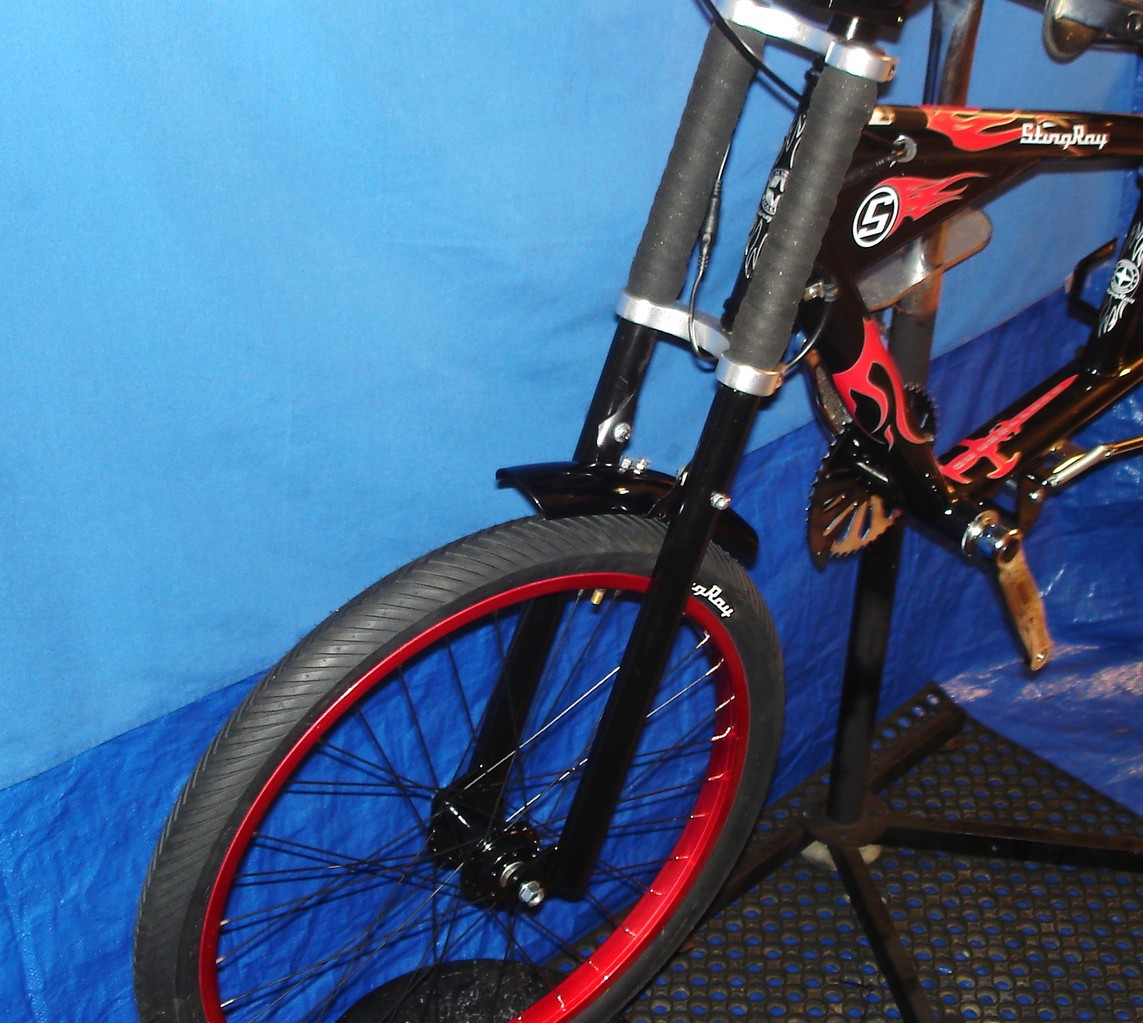

  • Install Fork Legs

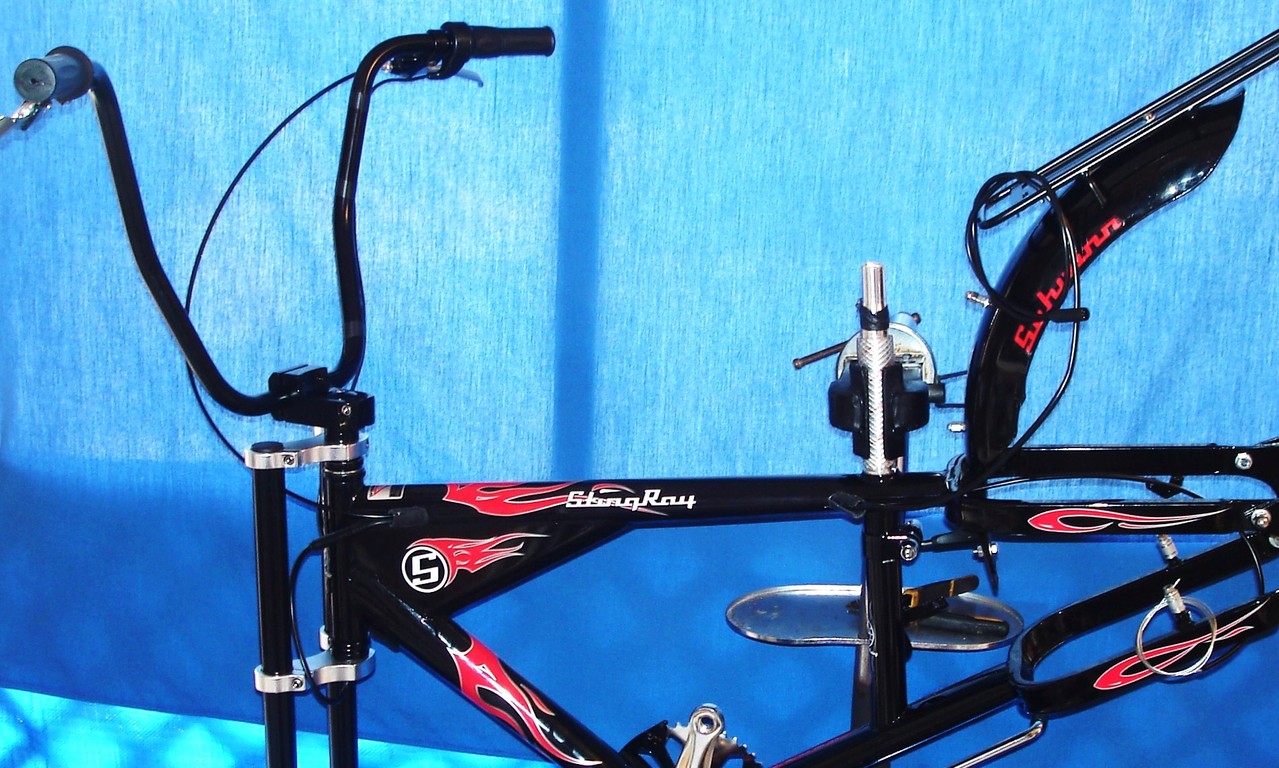

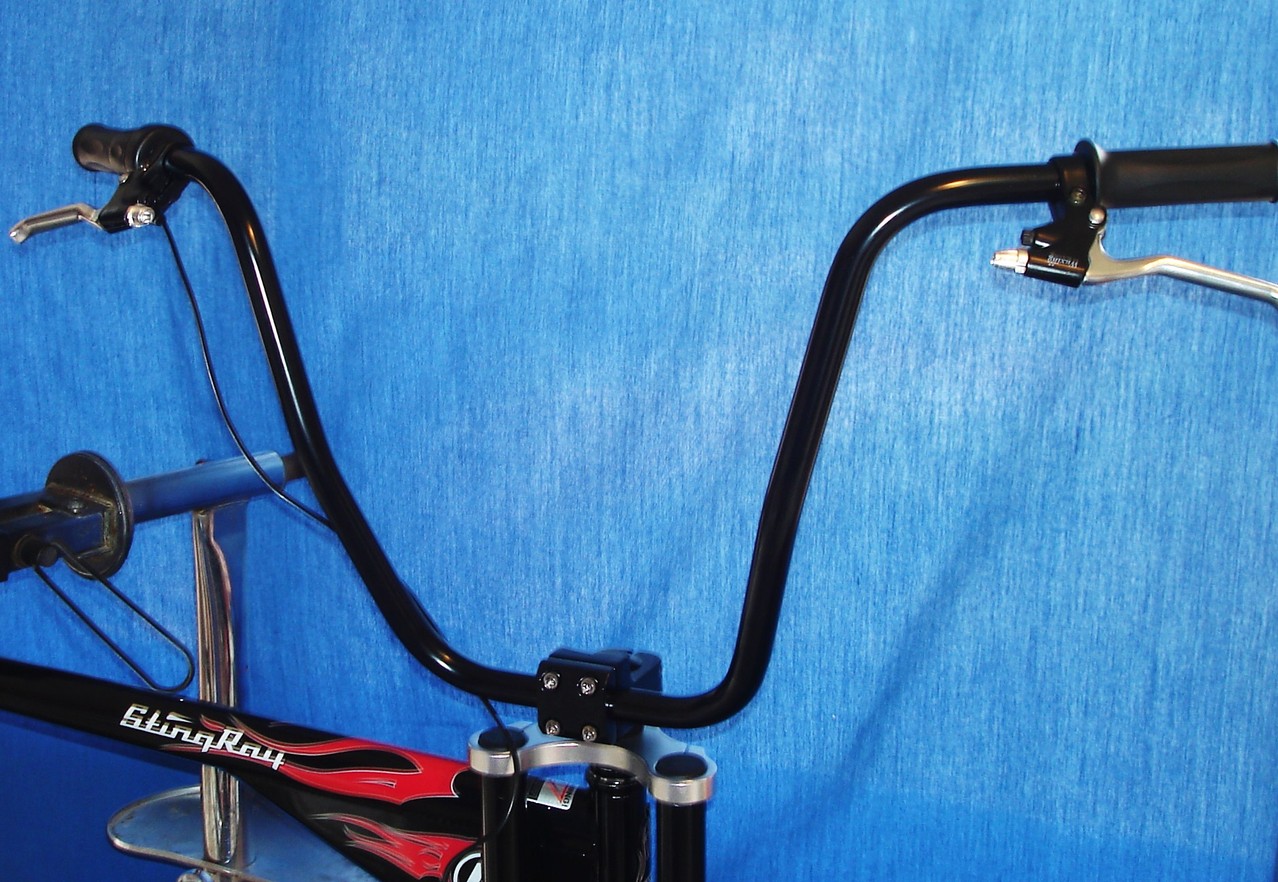

  • 14" inch Apehangers

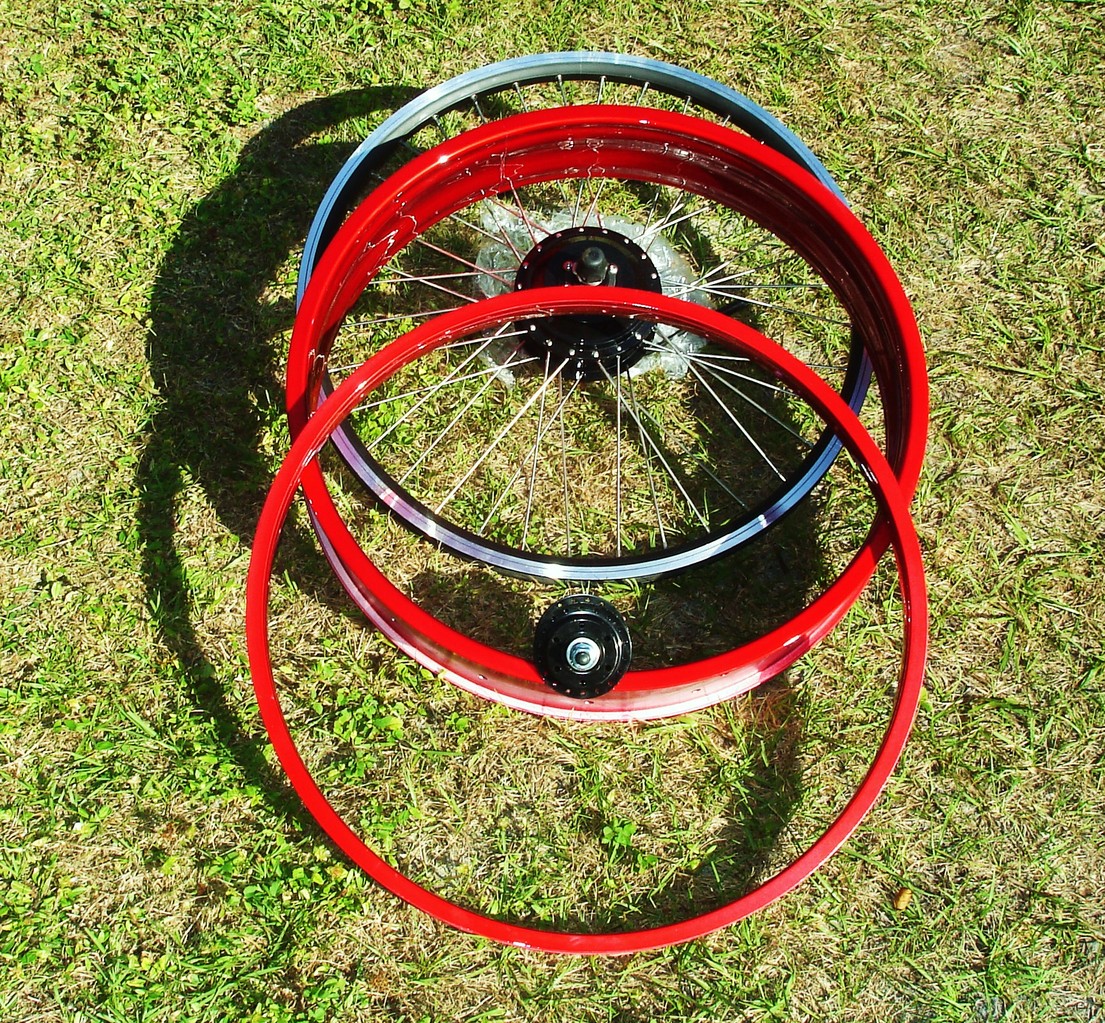

  • Paint Rims Candy Apple Red Metallic = E-BIKEKIT Rear ELECTRIC Disc Hub / Front Disc Hub

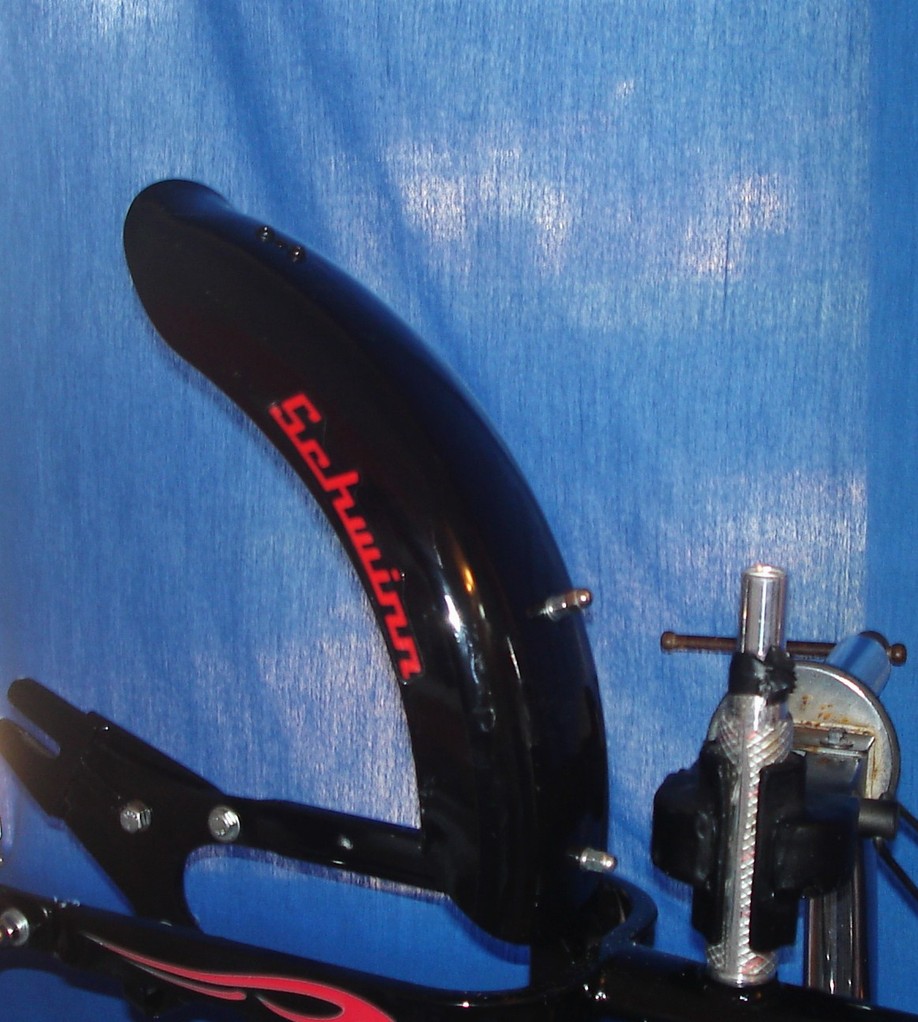

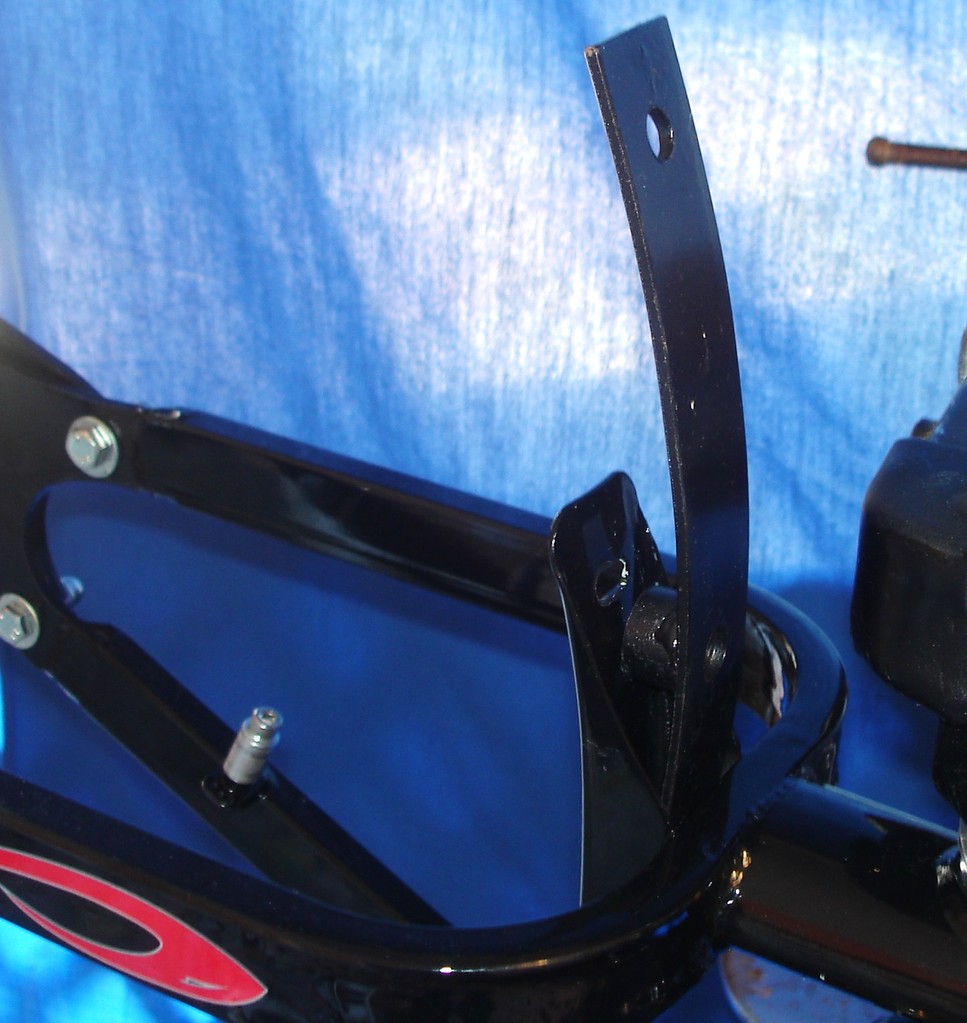

  • RETROFIT FENDER [BRACKET] TO ACCOMODATE 24 inch XL RR. Wheel Upgrade.

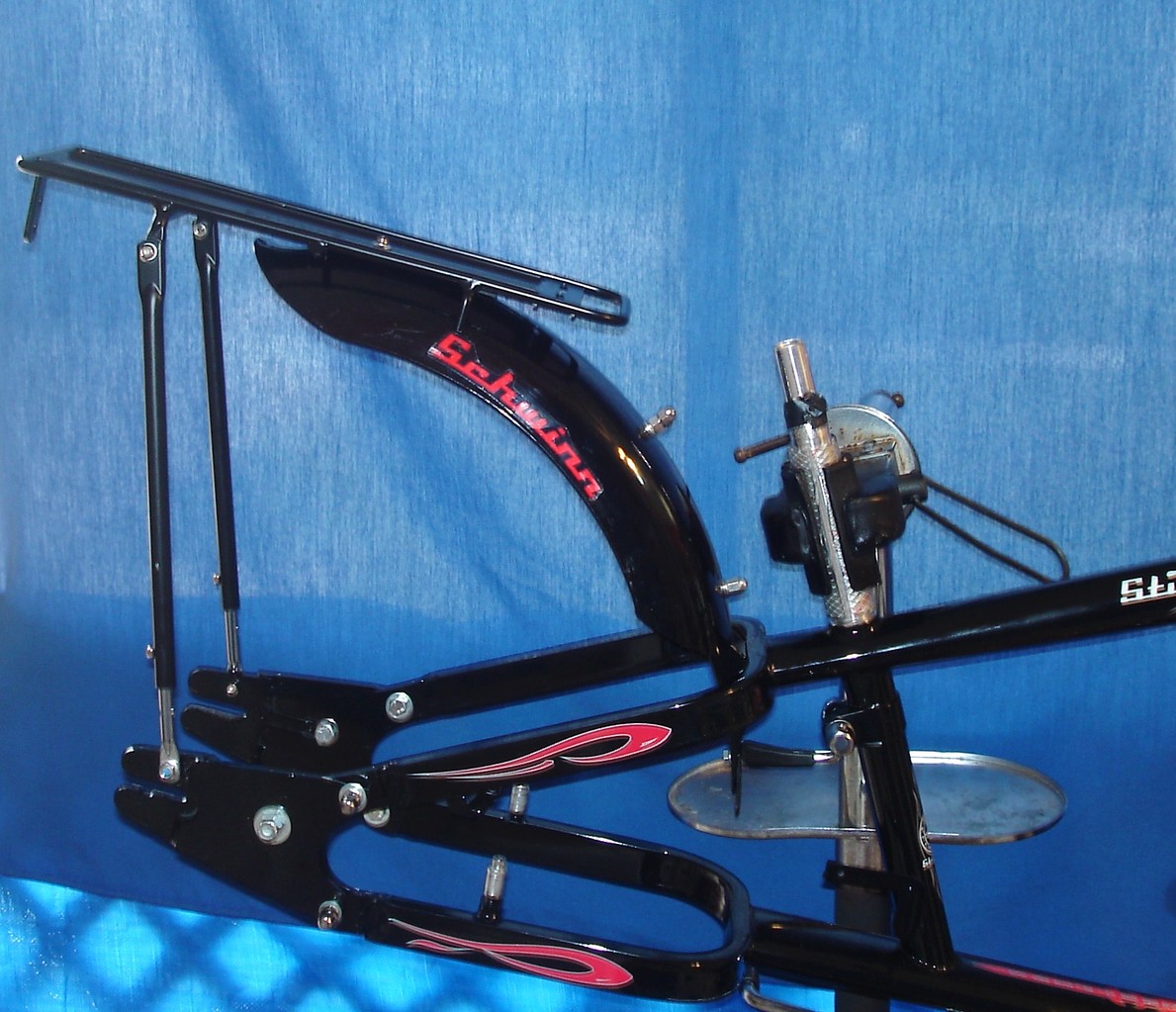

  • Notice: Frame Extender Brackets. Install Fender "ELEVATED" position

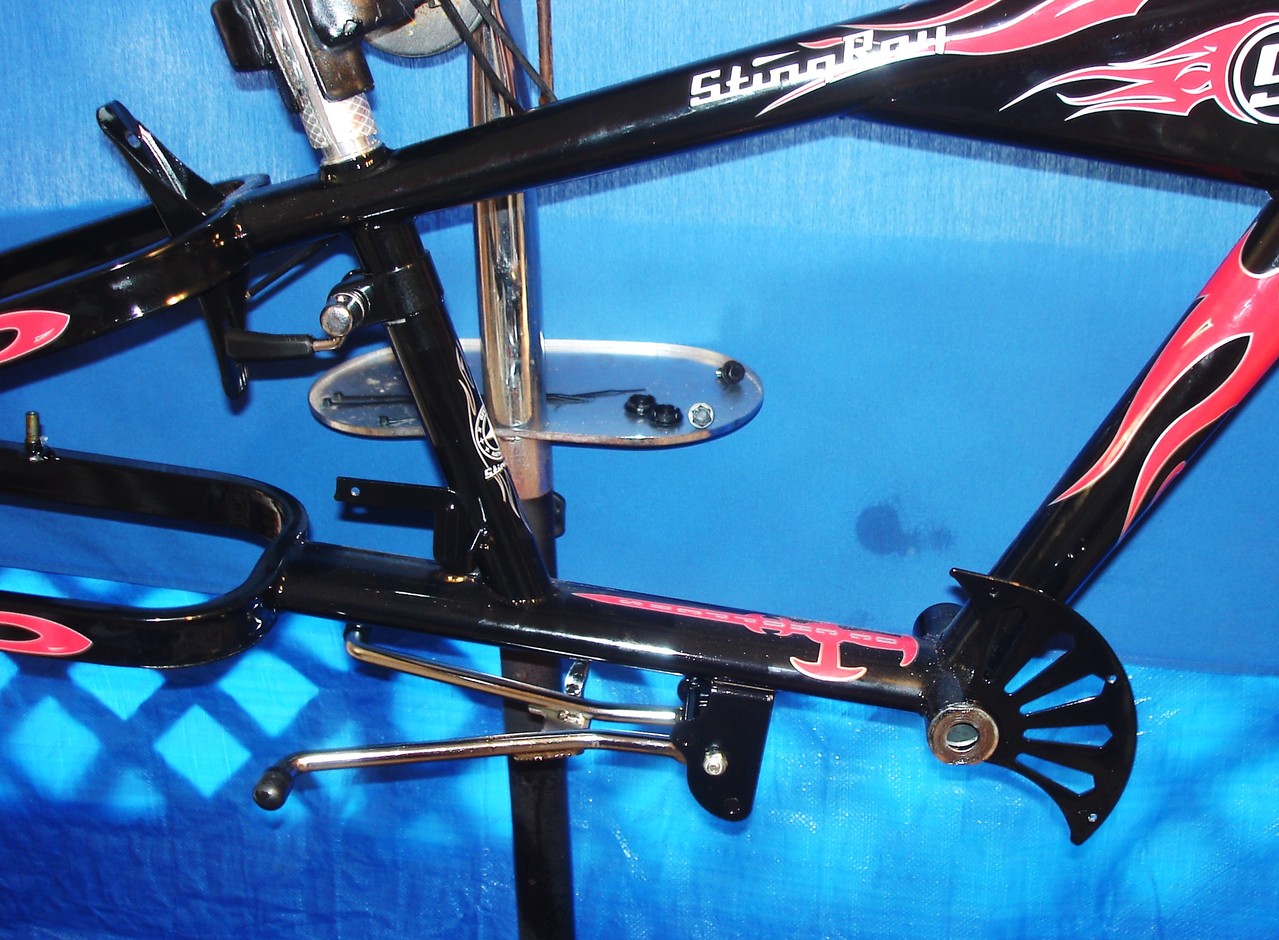

  • Install Battery Rack
  • Throttle (see cable), Brake Levers, GRIPS
  • Run Throttle Cable and RR. Brake Cable thru Frame to Rear of Bike.
  • Mock-Up & Install Front Fender
  • Install Front wheel and complete Disc Brake Assembly
  • Special [First of its Kind] Billet Aluminum Shifter Mount
  • COMPARE - Stock 20" inch OCC RR. Wheel to 24" inch Upgrade w/ E-BIKE KIT RR HUB
  • INSTALL REAR Wheel
  • INSTALL Chain, Deraillier, Disc Caliper, etc.

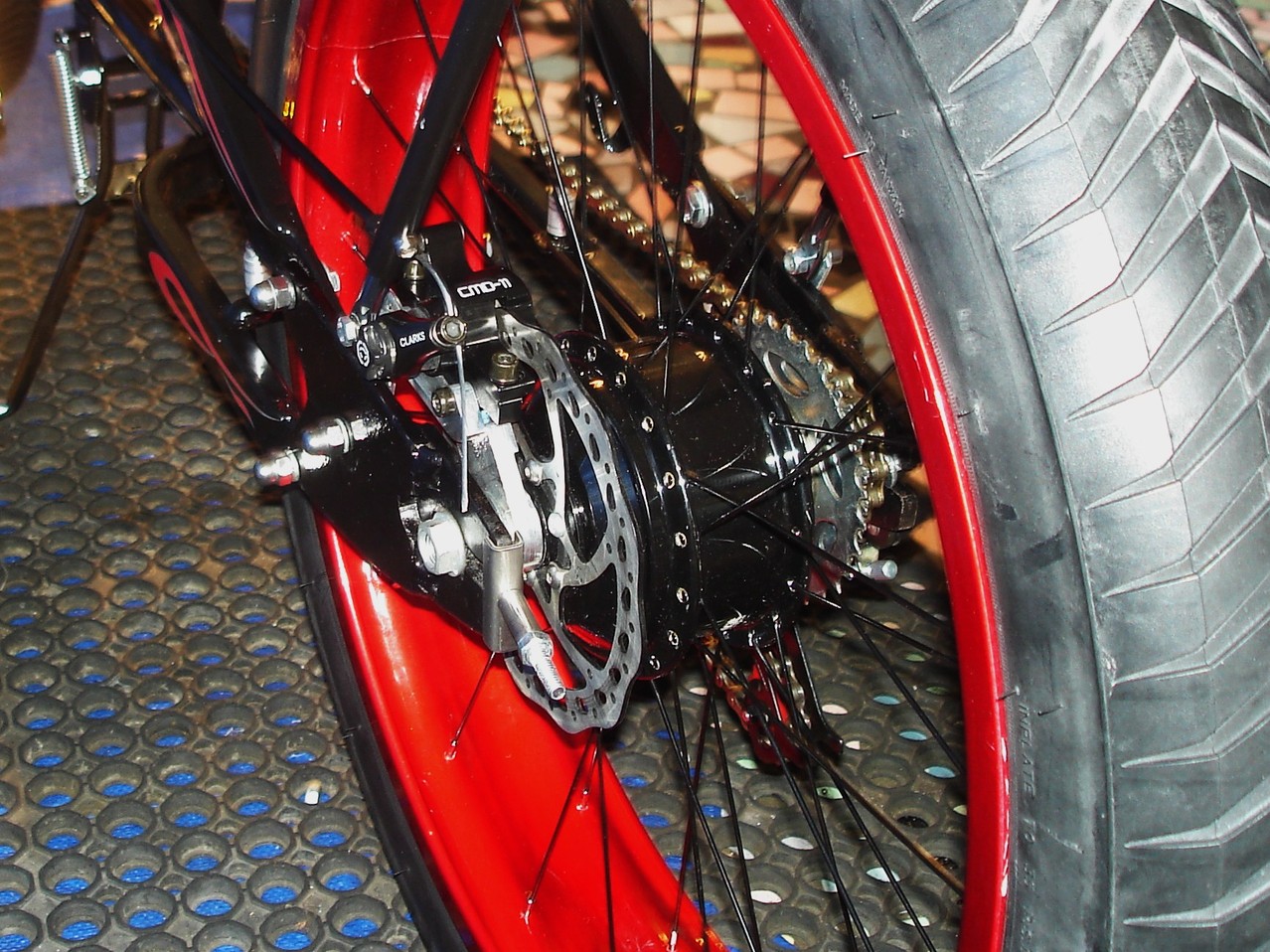

  • REAR DISC BRAKE ASSEMBLY - Universal Disc Caliper Mount / E-BIKE KIT HUB
  • LAY BACK SEAT POST
  • Battery Rack Supports, CHAIN Tensioner Wheel & Chainguard
  • Install Saddle, Connect Shifter Cable to Deraillier
  • Connect / Install 48 volt LithiumBattery -> TEST DRIVE!
  • Close Up Shifter and Mount

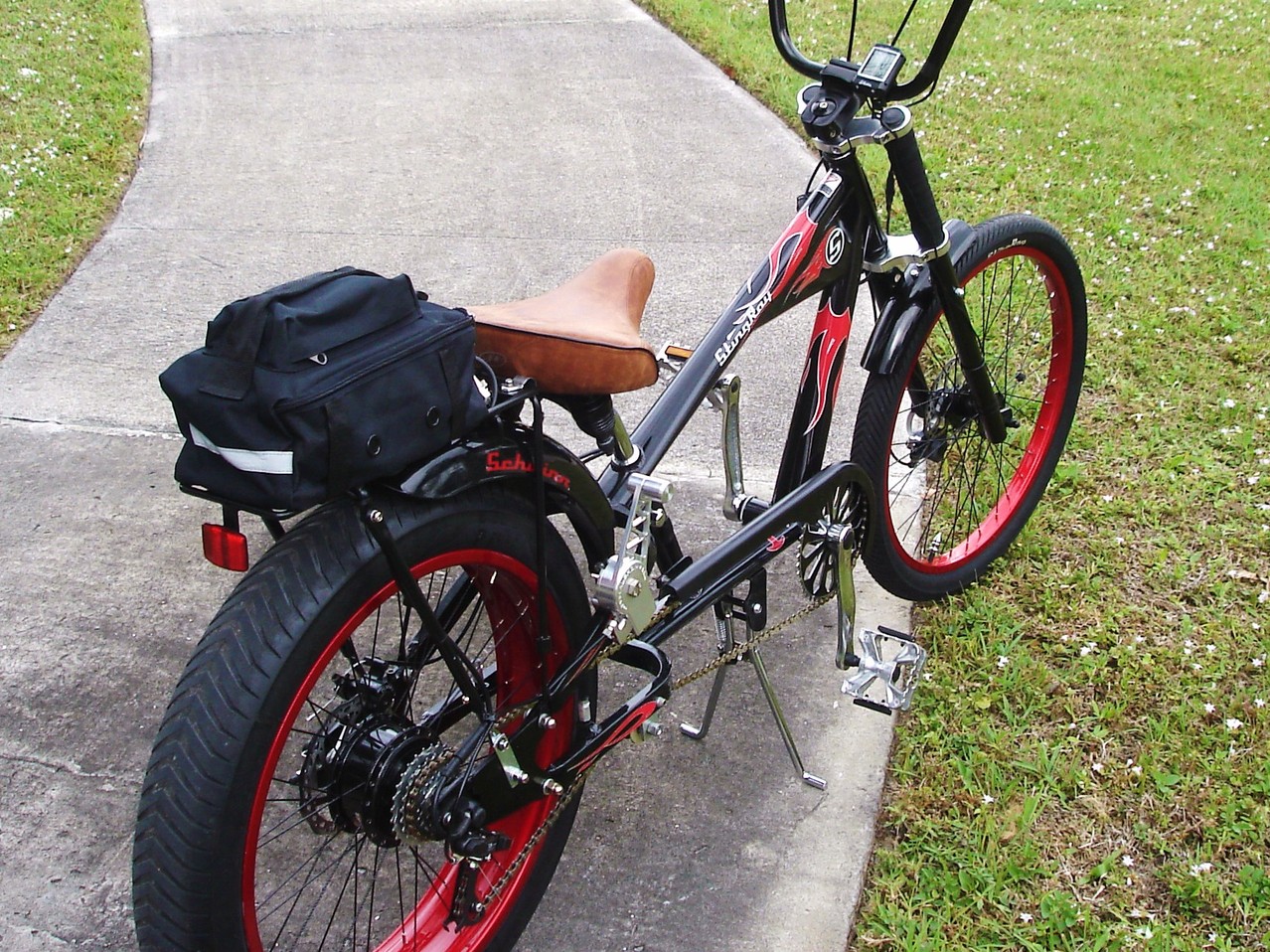

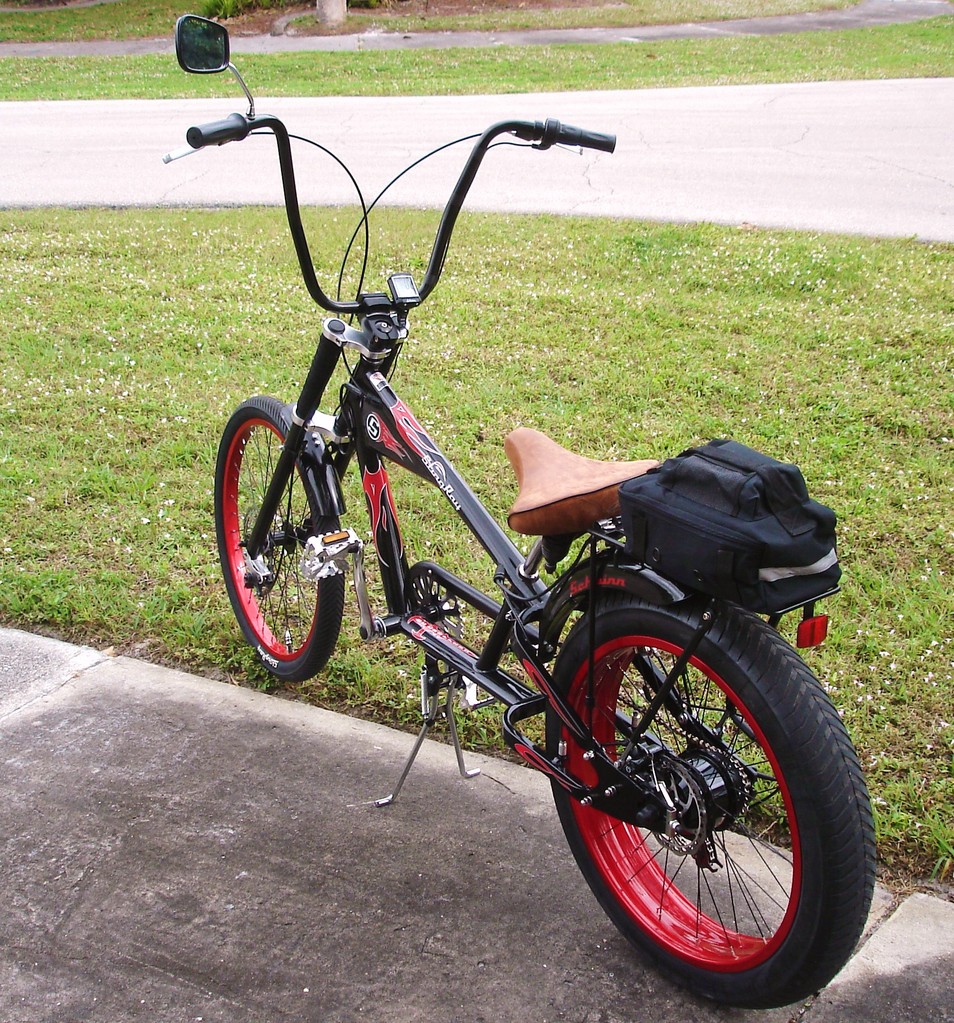

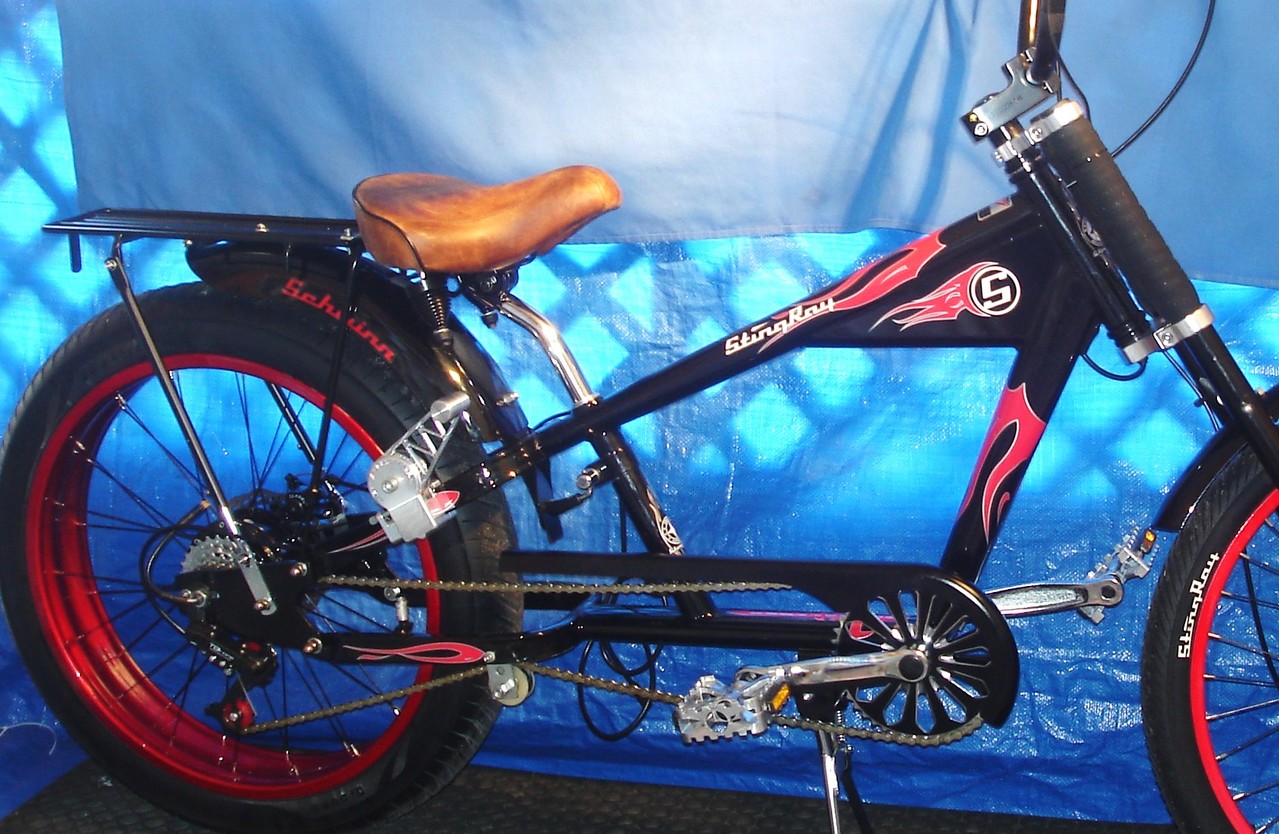

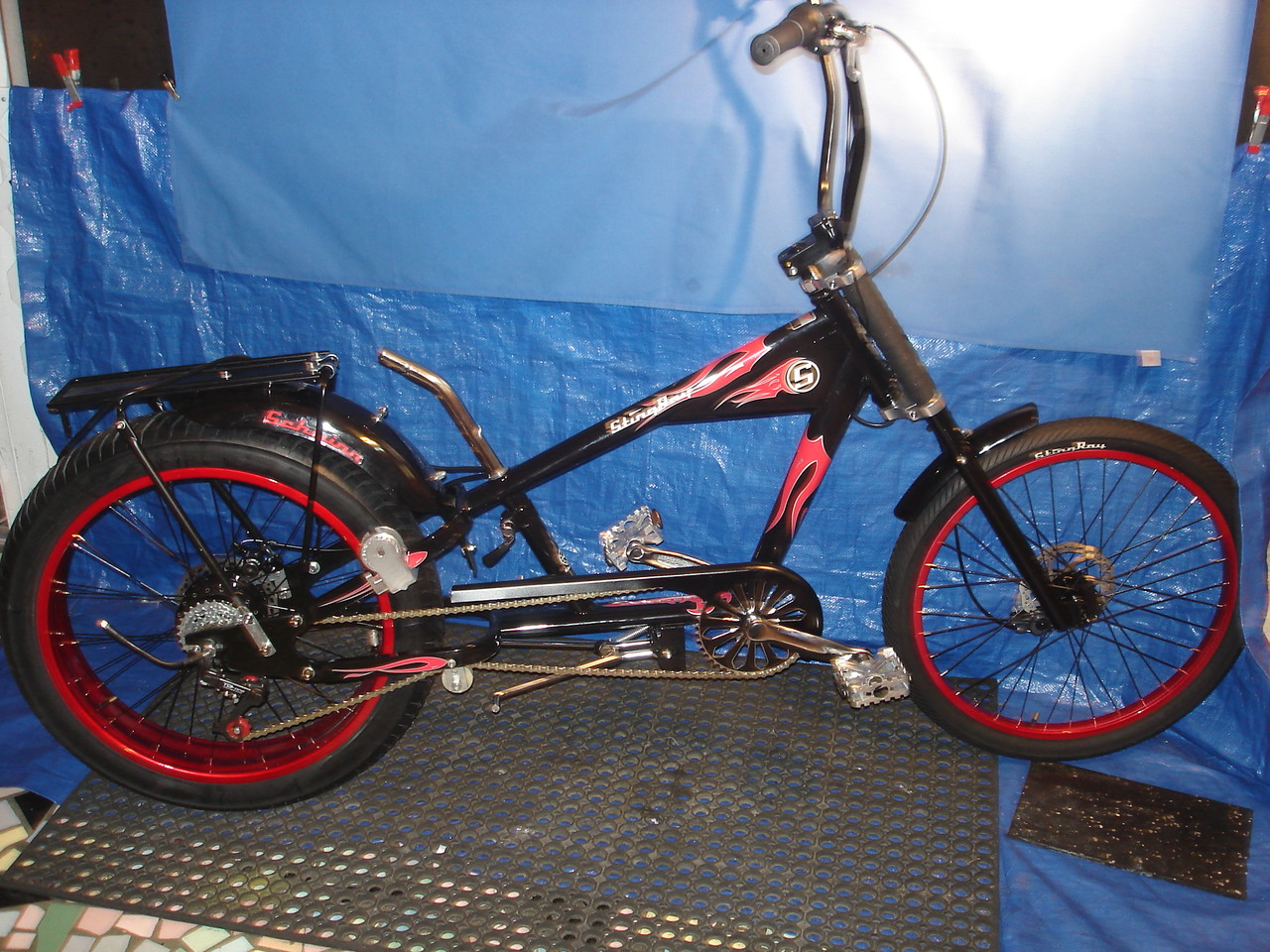

  • Completed project
  • Completed project
